Revit Elevator and Elevator Door Families

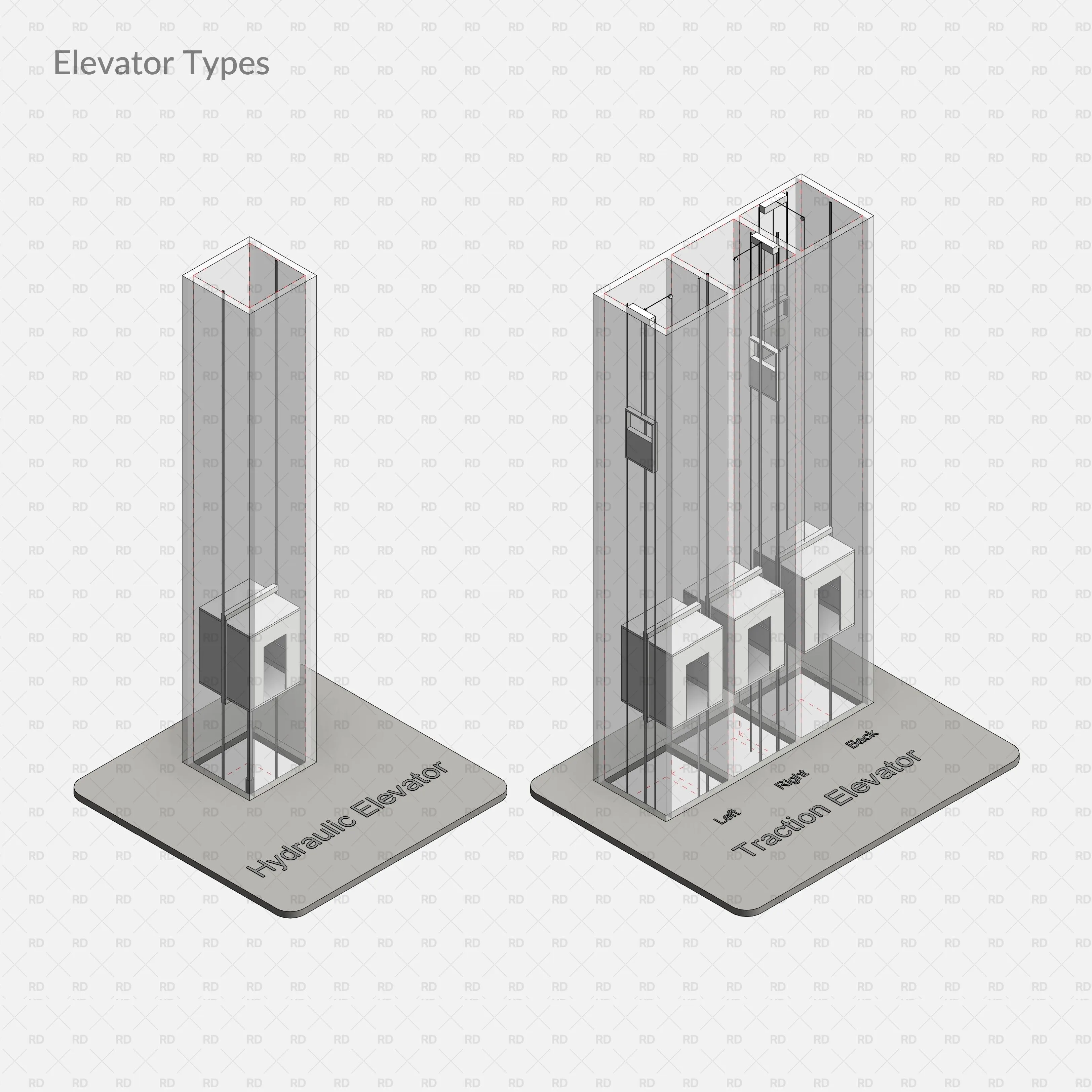

A pack of super parametric Revit Families to model any Elevator types you need. Including a Revit Hydraulic Elevator, a Revit Traction Elevator, an elevator door Family with 6 doors options and 4 panel options.

Perfect for public spaces, office buildings, shopping malls, and any large-scale projects with a significant circulation system.

Includes the following Revit Families ready to use:

1. Revit Hydraulic Elevator
2. Revit Traction Elevator
3. Revit Elevator Door (6 door options and 4 panel options)

Entrance Types

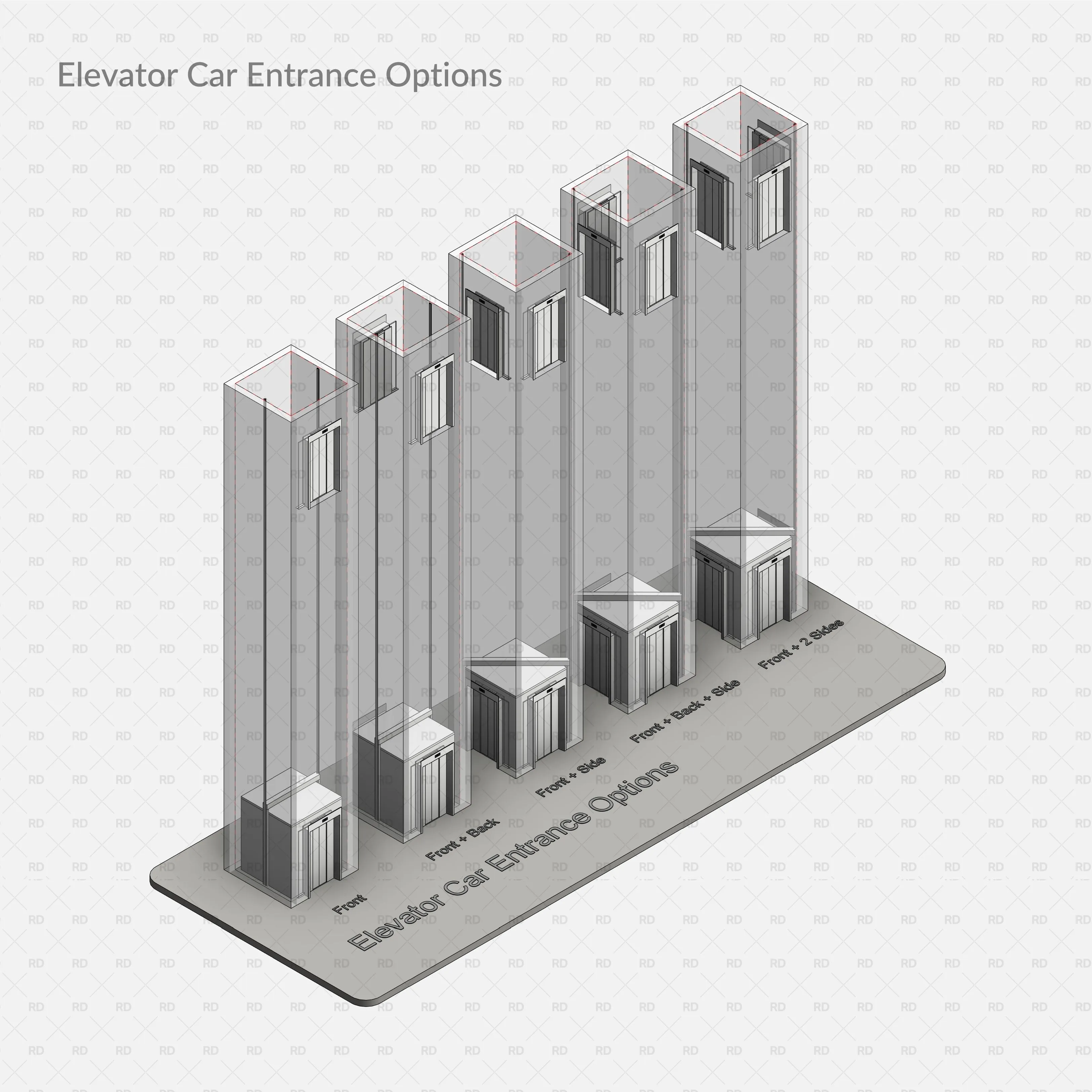

The cart position and the counterweight position support five entrance combinations:

1. Front
2. Front and back
3. Front and side
4. Front, back and side
5. Front, and two sides

Smart Revit Elevator Door Family

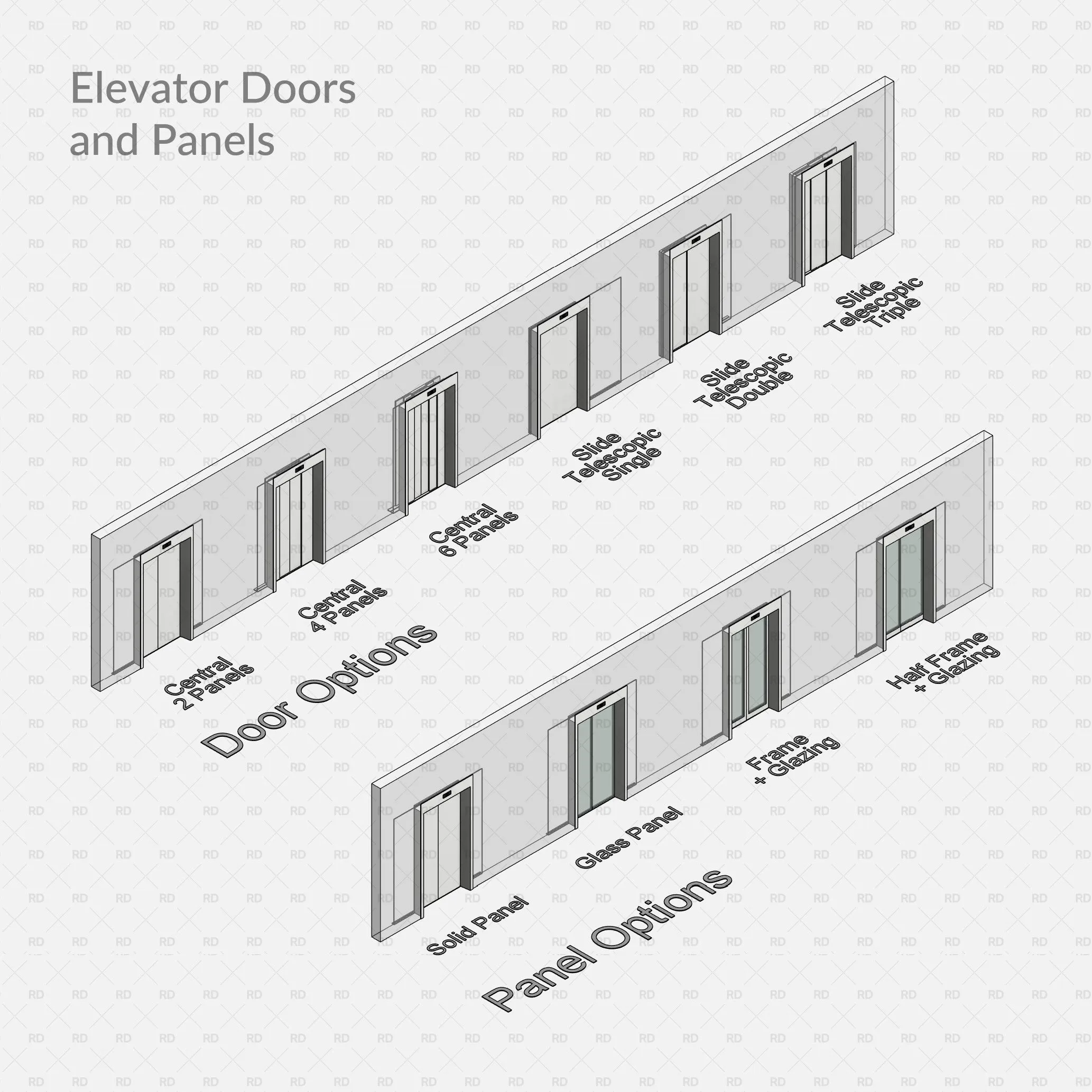

One Revit door family that includes 6 types of doors, and 4 types of panels.

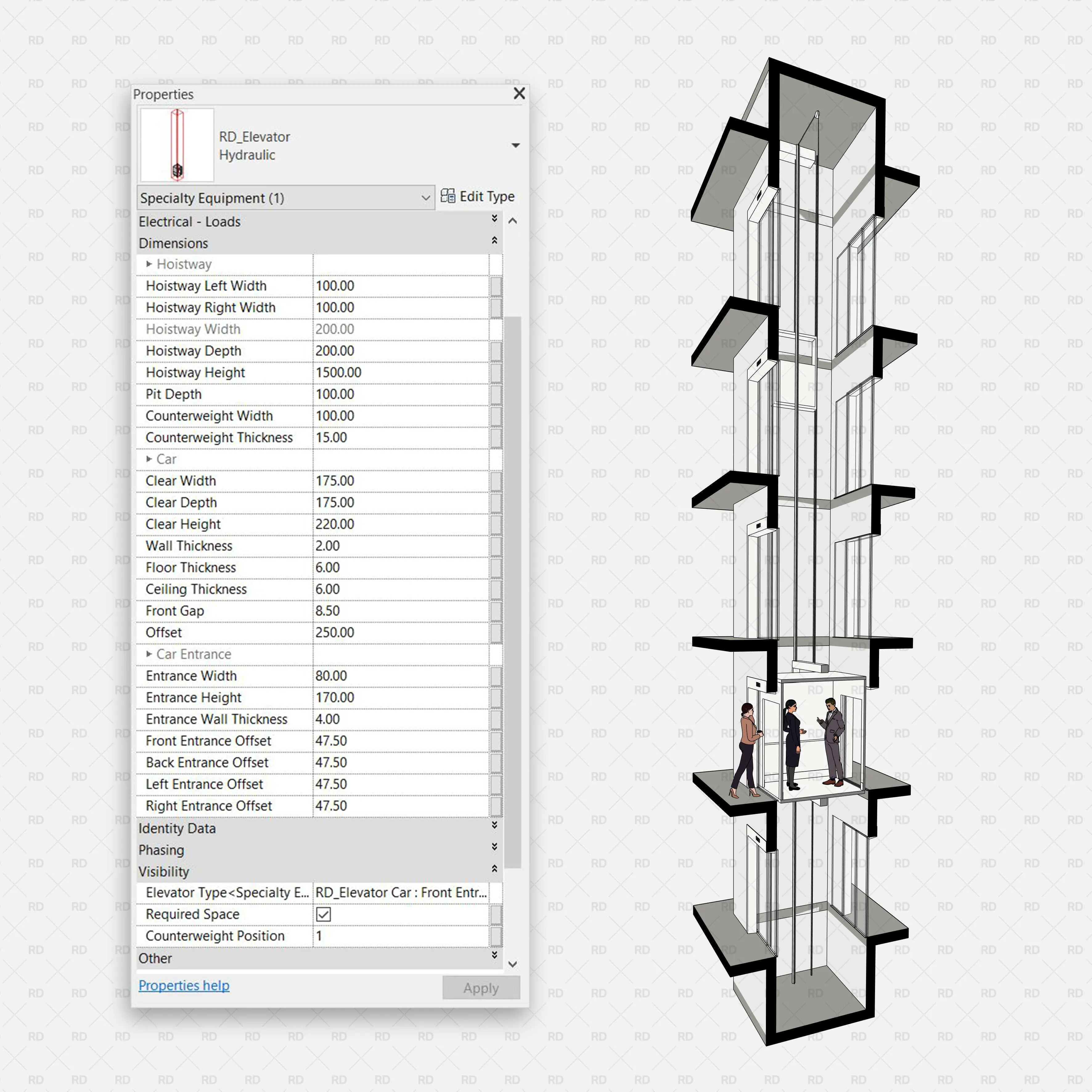

Instance Parameters:

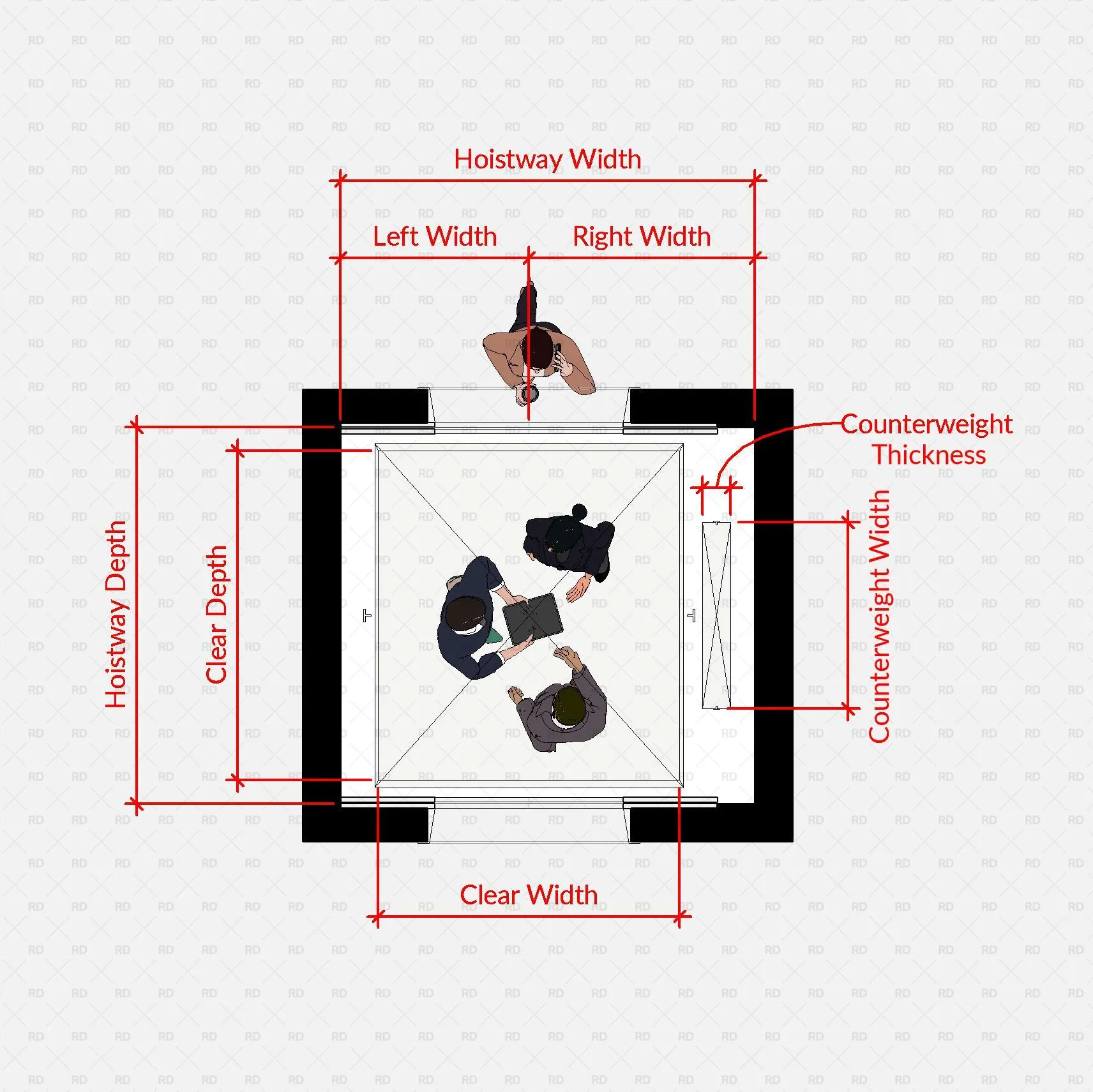

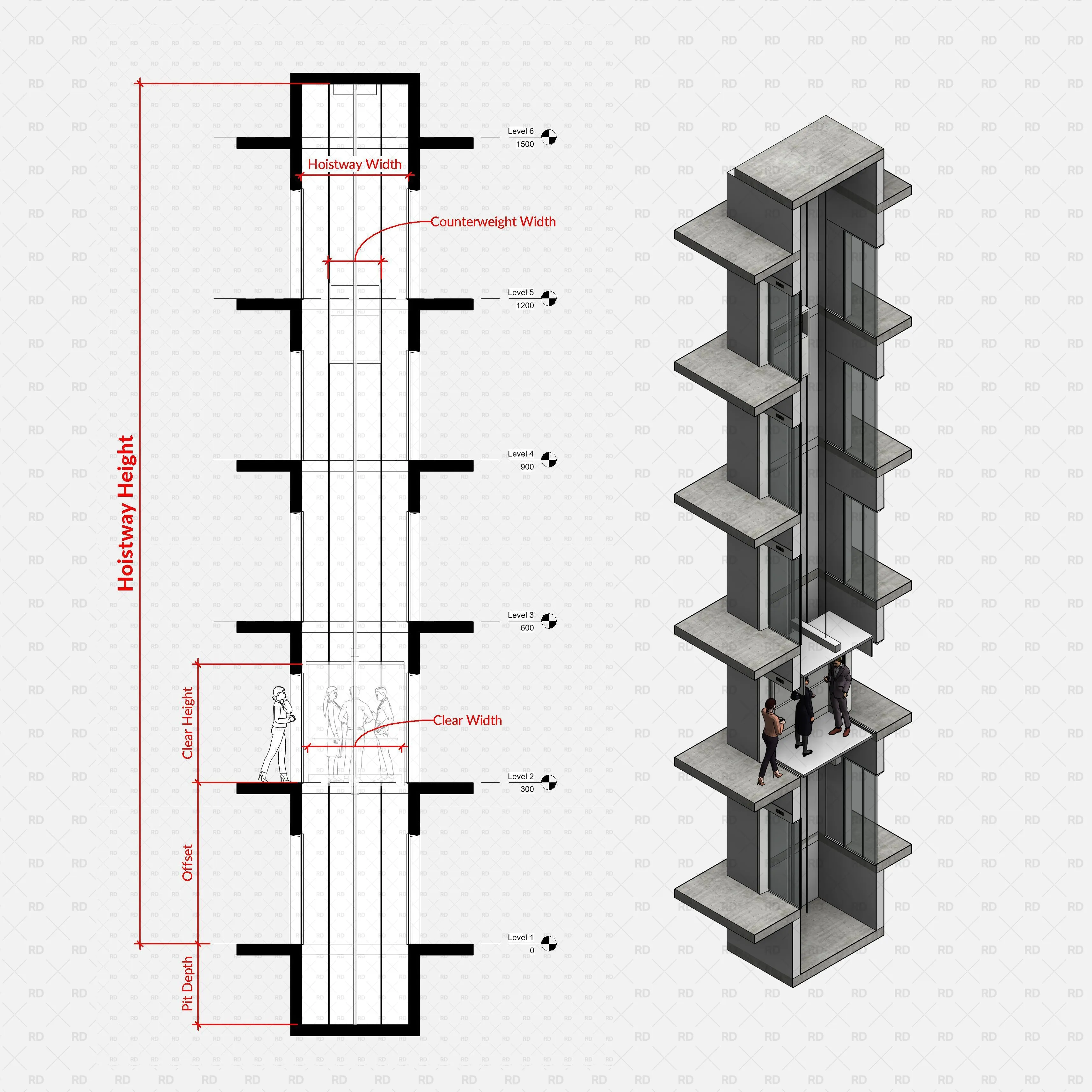

• We developed the elevator Revit Families with interior designers in mind: all dimensions are instance parameters, allowing quick and easy modification of the families.
• Please check the Instance Parameters for each family, as shown in the description images, to ensure they fit your needs.

Technical Specifications:

• Families are work plane-based for easy placement on walls, floors, furniture, and any other surface
• Families include Material Parameters for each part
• Families are created using international standards for escalators and travelators  after extensive research in the relative market
• All Families are parametric and designed with the user in mind

Downloads:

• The download folder includes 3 Revit Families and a showroom file.
• Categories: Specialty Equipment and Doors
• Please make sure your Revit version is compatible with the product version
